BUSINESS INSTALLATION GALLERY
Below is an assortment of installations to give you an idea of our Business Installations with our equipment based on the direction of line-of-sight to our towers.

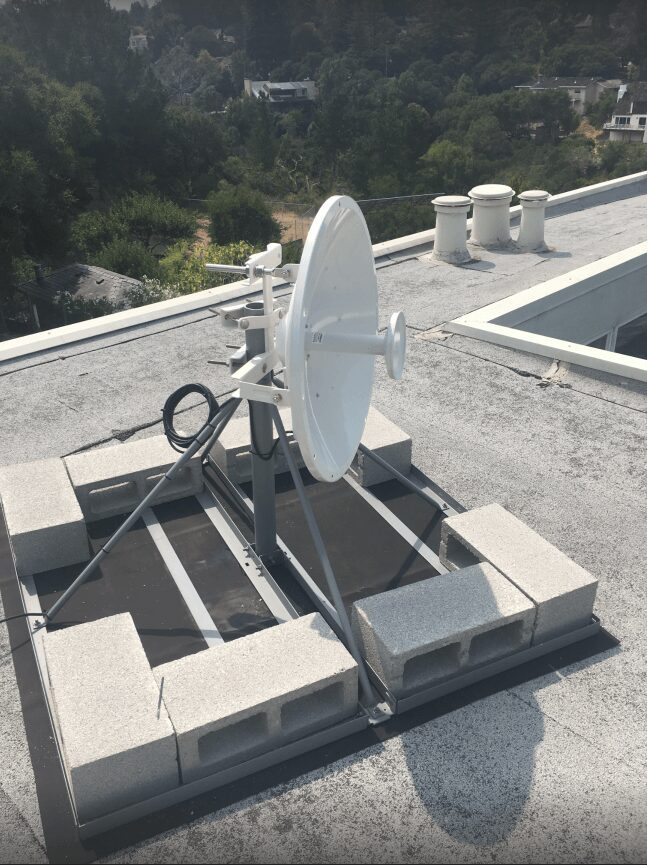

NON-PENETRATING INSTALLATION
An example of antenna placement on a mat with cinder blocks and tripod.

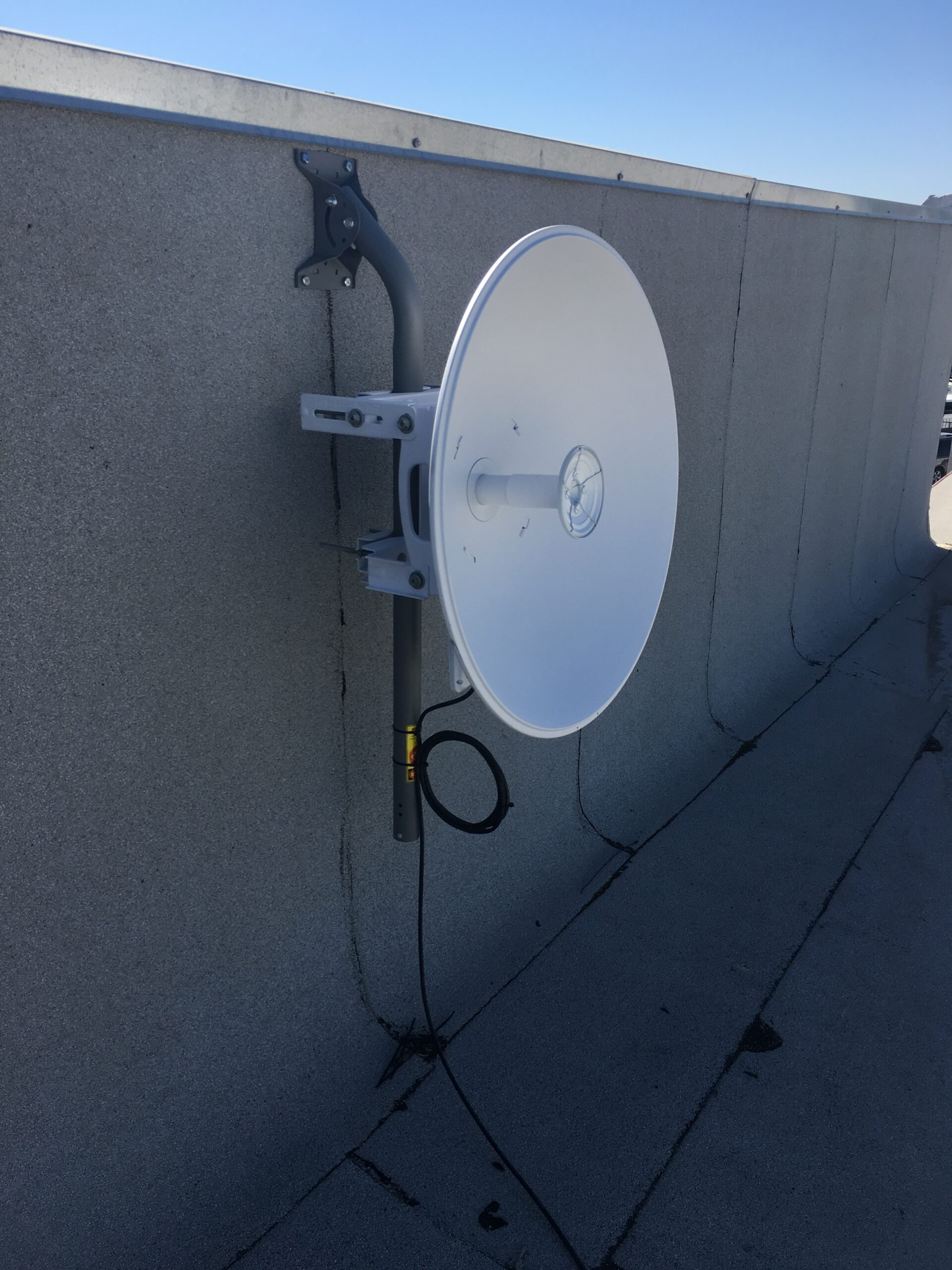

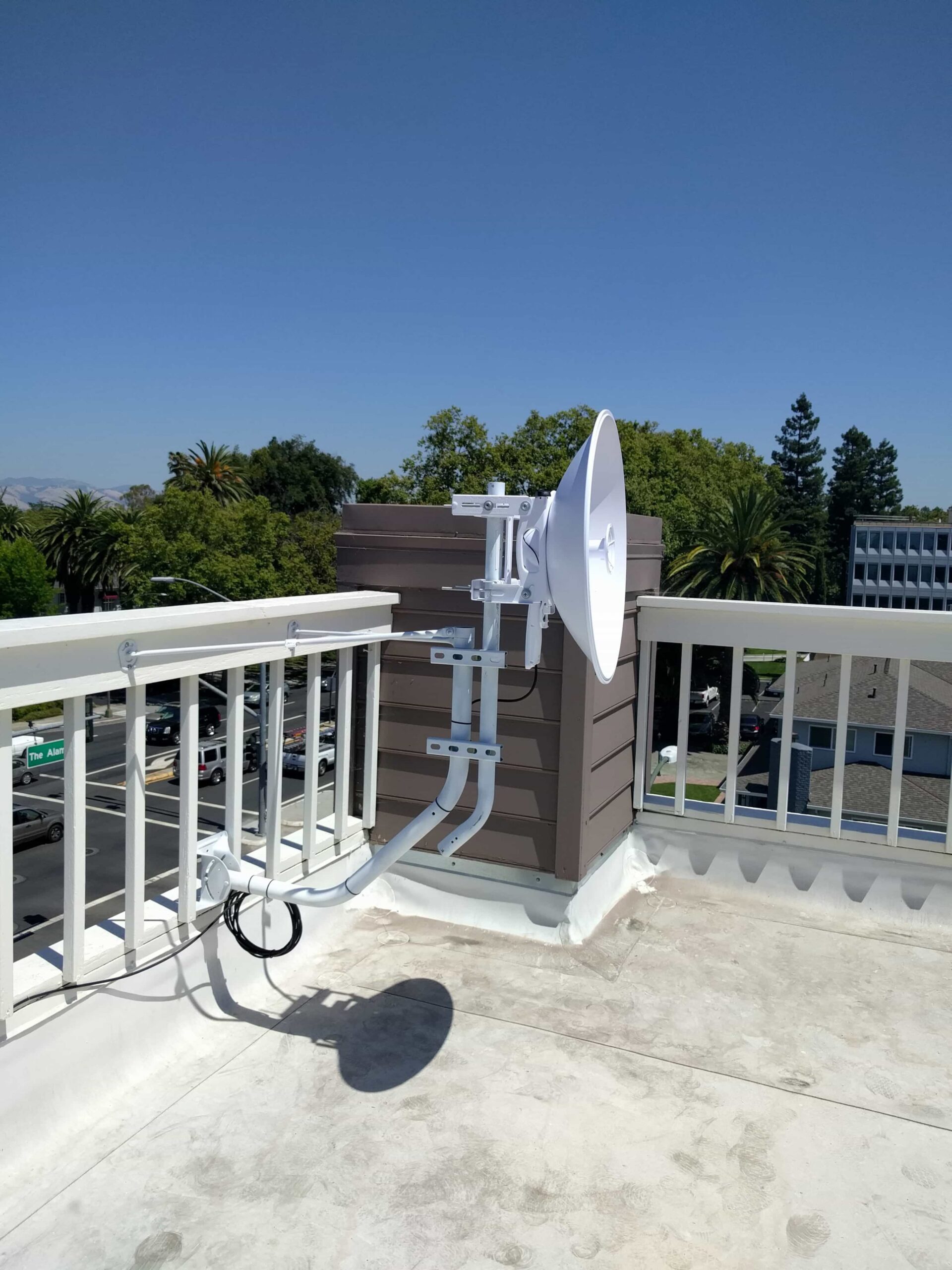

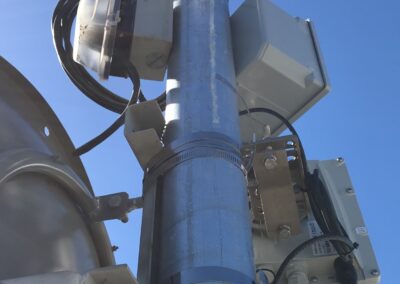

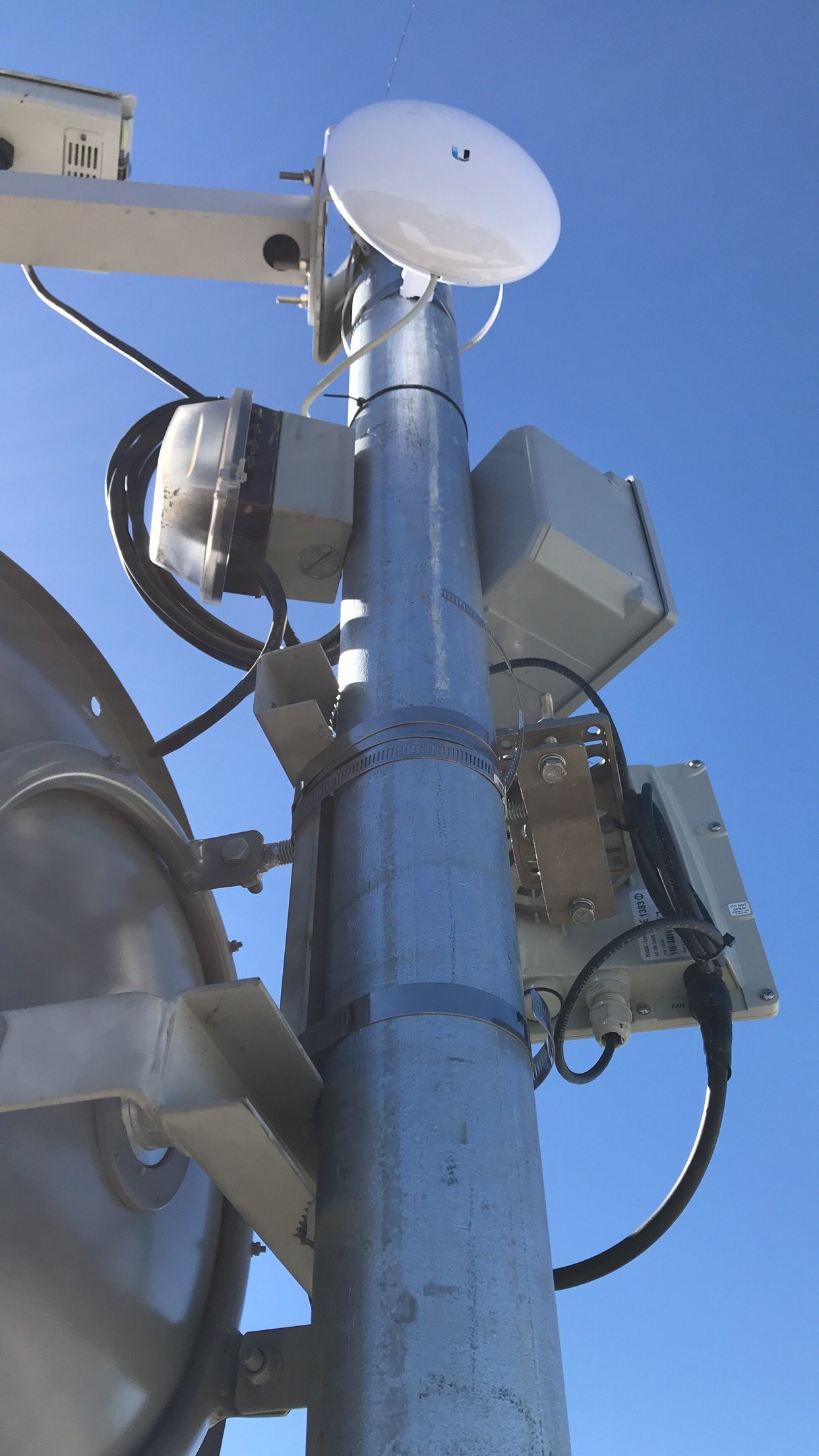

INSTALLED ON EXISTING INFRASTRUCTURE
Installed directly roof railing with J mounts facing in line-of-sight to our tower.
ON BUILDING ROOF
This install was on the client’s roof with a pole installed for stability.

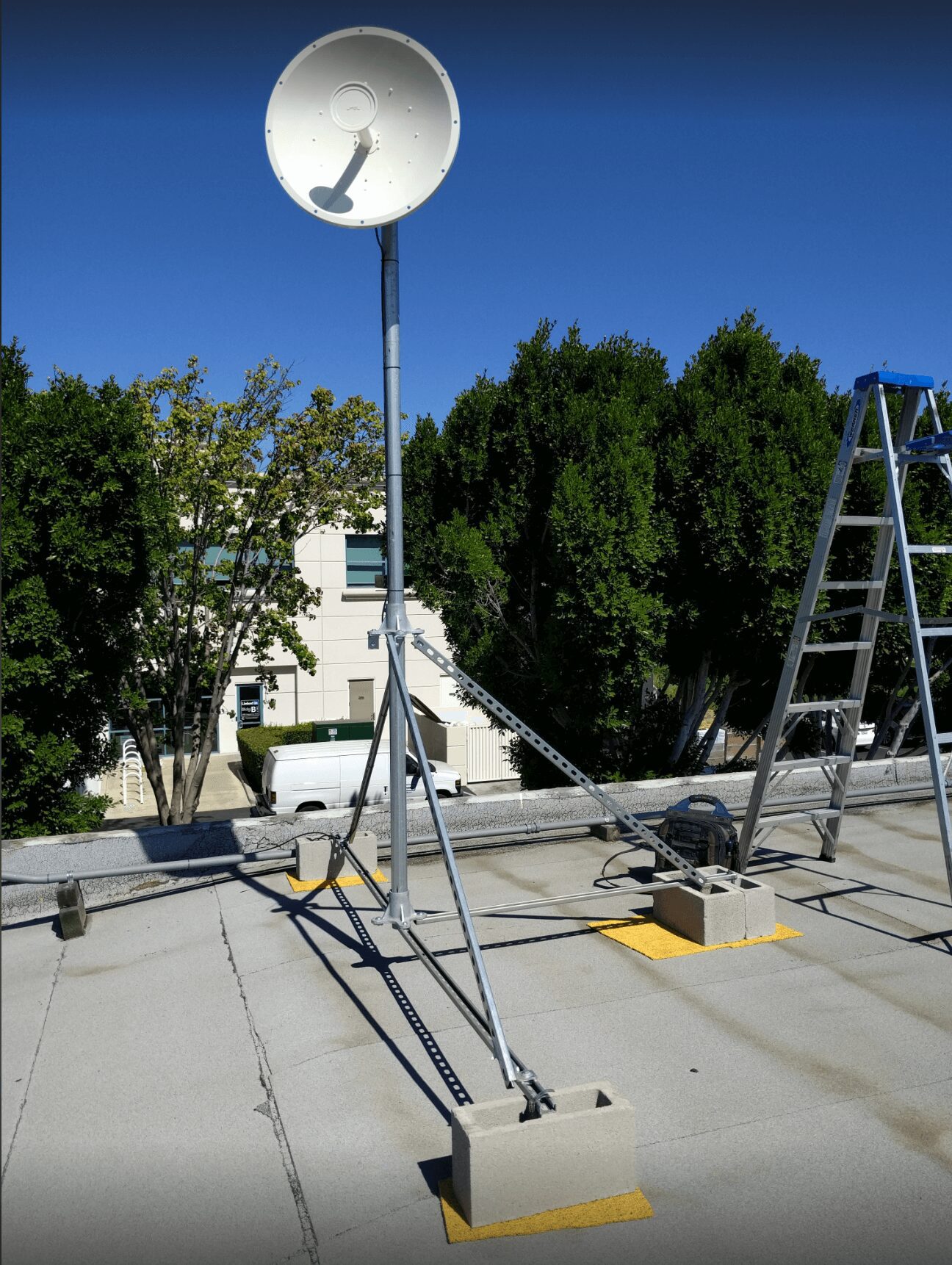

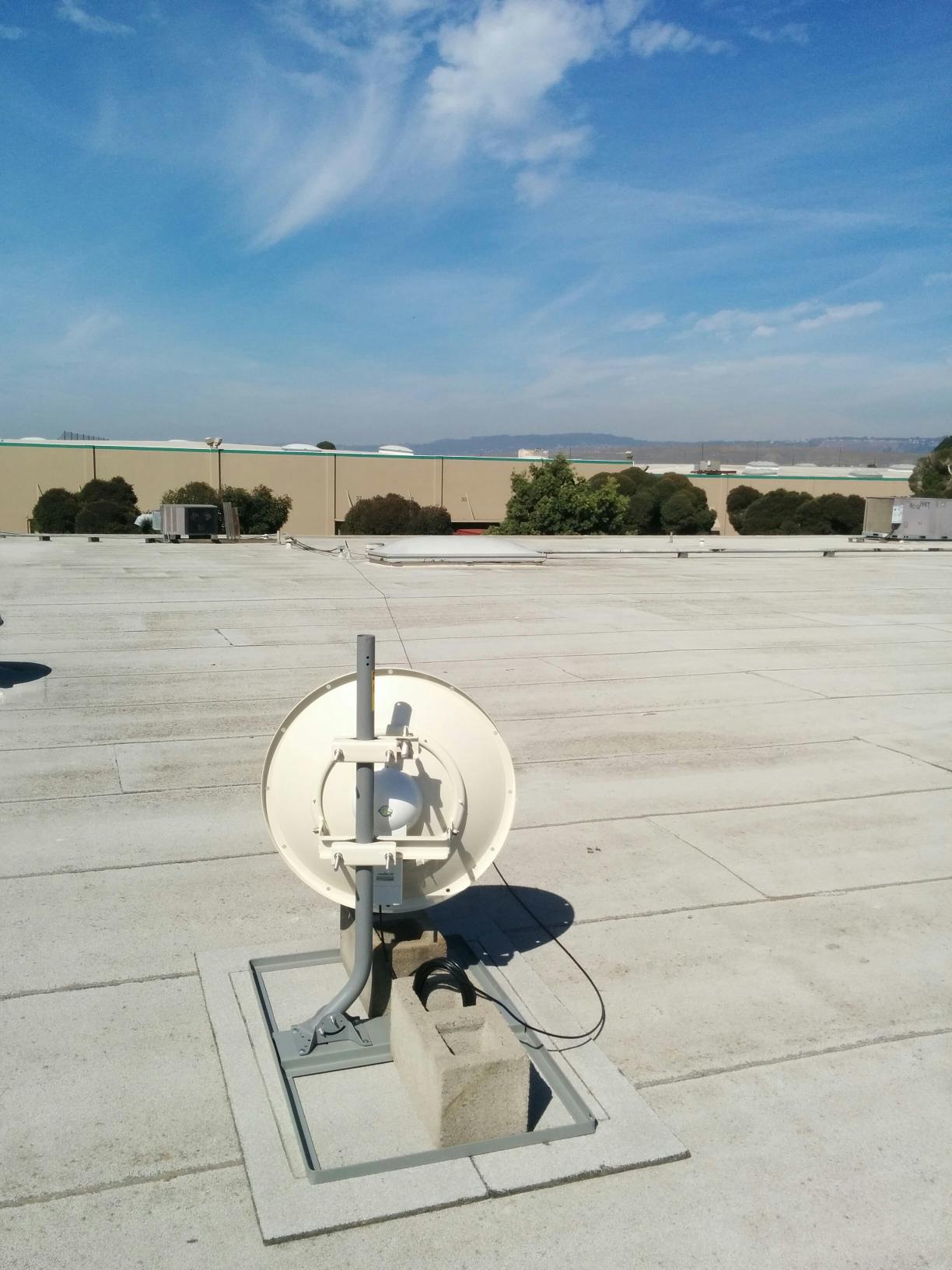

TRIPOD SET UP
This antenna was installed on a pole and tripod set up with cinder blocks and spaghetti mat for non-penetration. For more information about Spaghetti mat click Yellow Spaghetti Data Sheet.

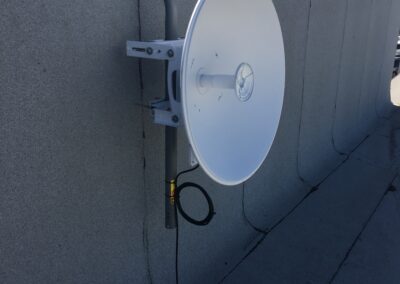

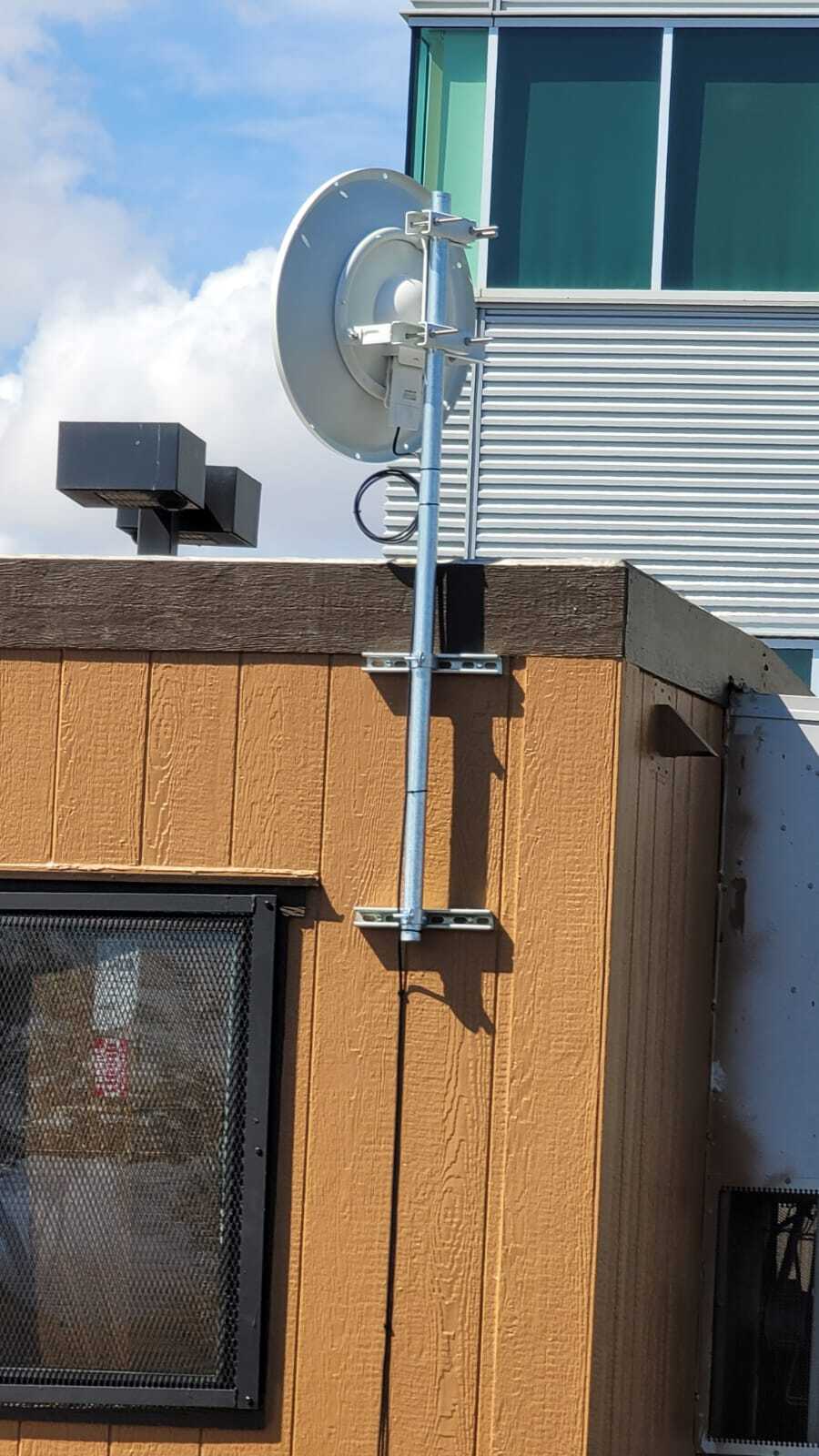

ON EXISTING INFRASTRUCTURE
Installed on the client’s existing building structure on the roof.

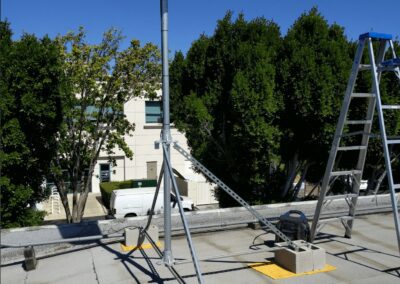

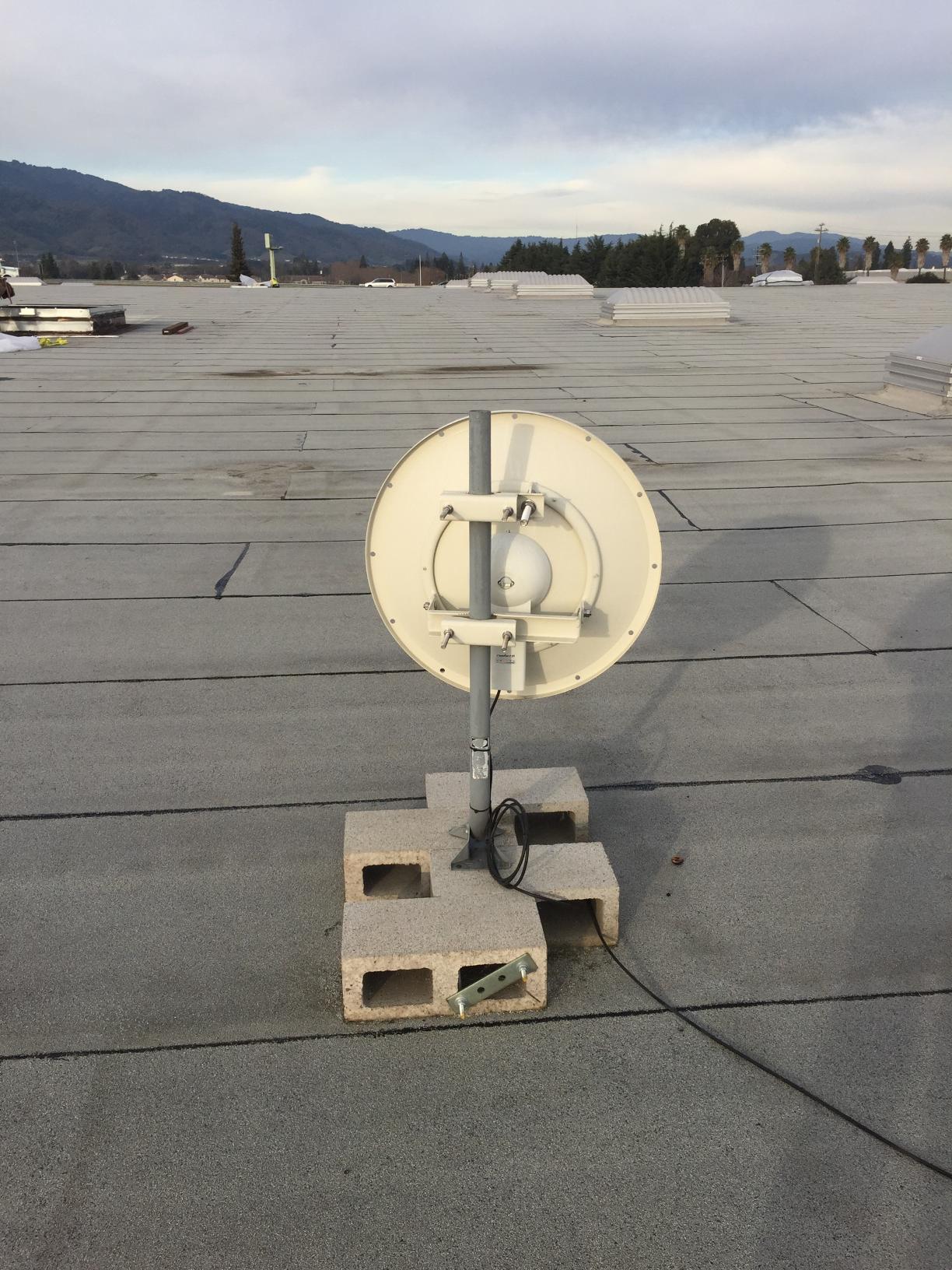

BUSINESS NON-PENETRATING INSTALL
Installed on top of the client’s roof with spaghetti mat for roof protection and cinder blocks for stability.
Equipment Dimensions
Below are examples of our equipment with dimensions.
![](https://www.ethericnetworks.com/wp-content/uploads/2024/03/innovating-industrial-design-1024x504-1.jpg)

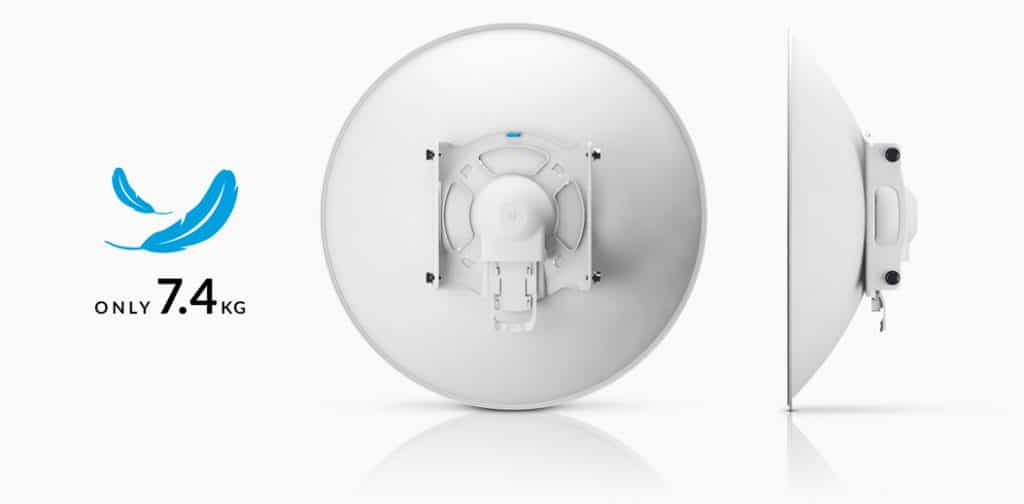

Weighing in at only 7.4 kg, the Antenna we use is engineered with ruggedized yet lightweight components to withstand harsh outdoor conditions.
2 ft Antenna:
- Dimensions: 650 x 650 x 386 mm, (25.6 x 25.6 x 15.2″)
- Weight: 7.4 kg (16.31 lb)
3 ft Antenna:
- Dimensions: 1050 x 1050 x 421 mm, (41.34 x 41.34 x 16.57″)
- Weight: 13.5 kg (29.76 lb)

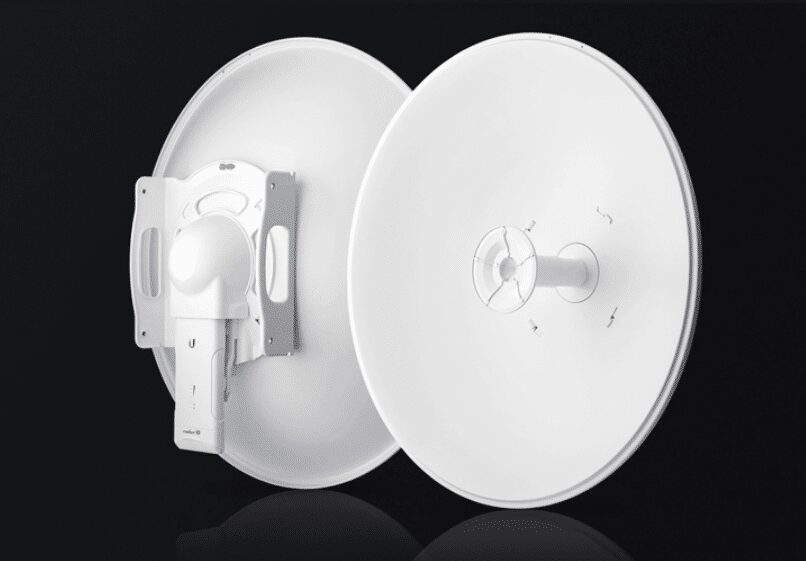

![](https://www.ethericnetworks.com/wp-content/uploads/2024/03/Etheric-Radio.png)
- Dimensions: 162 x 84 x 37 mm (6.38 x 3.31 x 1.46”)
- Weight: 250 g (8.81 oz)

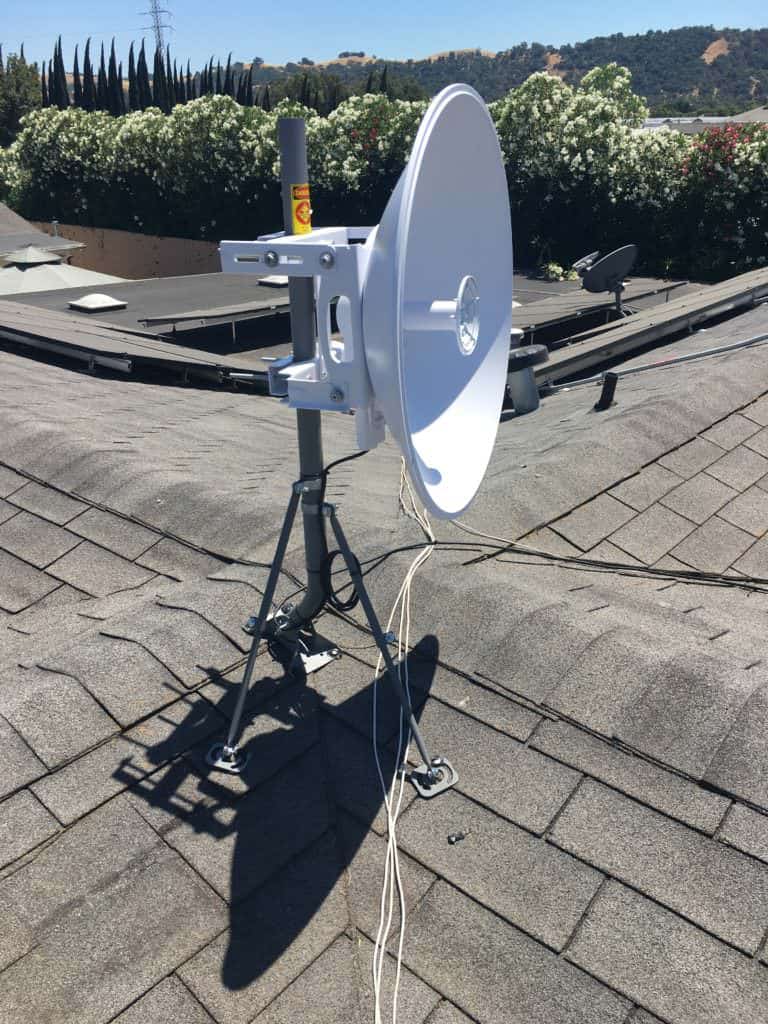

![Residential Installation Gallery](https://www.ethericnetworks.com/wp-content/uploads/2024/03/IMG_0396-768x1024-1.jpg)
Residential Installation Gallery
- J Pipe Antenna Mount
- Designed For Outdoor Antennas
- E-Coat Finish For Maximum Weather Protection
- Mountable On Side of House Or Residential or Business Roof
- Heavy Duty Galvanized Steel

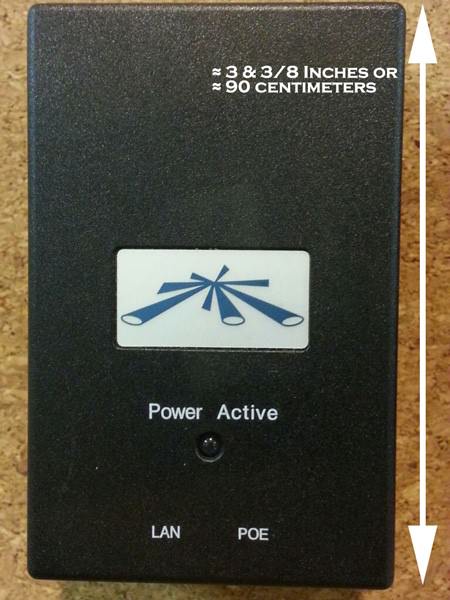

![Residential Installation Gallery](https://www.ethericnetworks.com/wp-content/uploads/2024/03/POE-big.jpg)
PoE Adapters provide a variety of features to help protect your PoE devices:
- Surge protection
- Clamping protection
- Maximum surge discharge
- Peak pulse current
- AC cable with earth ground

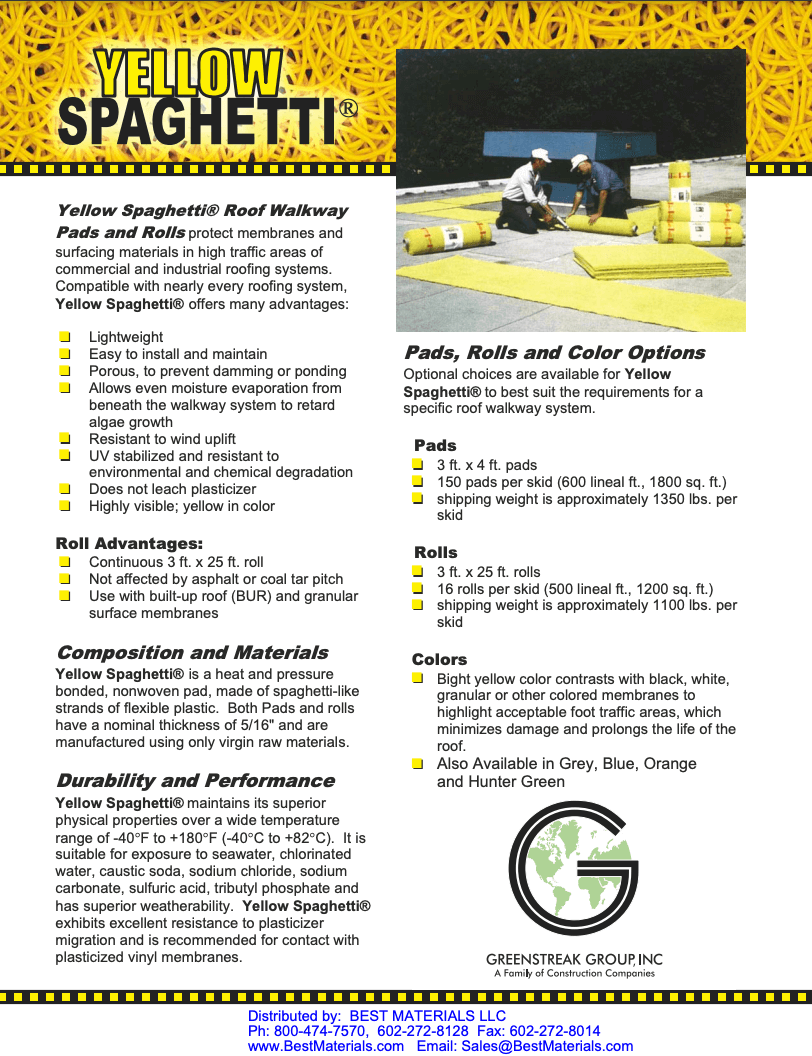

![Yellow Non-Penetrating Mats](https://www.ethericnetworks.com/wp-content/uploads/2024/03/YellowSpaghetti.png)
For more information about our non-penetrating material click >>> Yellow Spaghetti Data Sheet.
